Large airflow, high efficiency, serving as the main fan in fresh air systems to deliver sufficient ventilation.

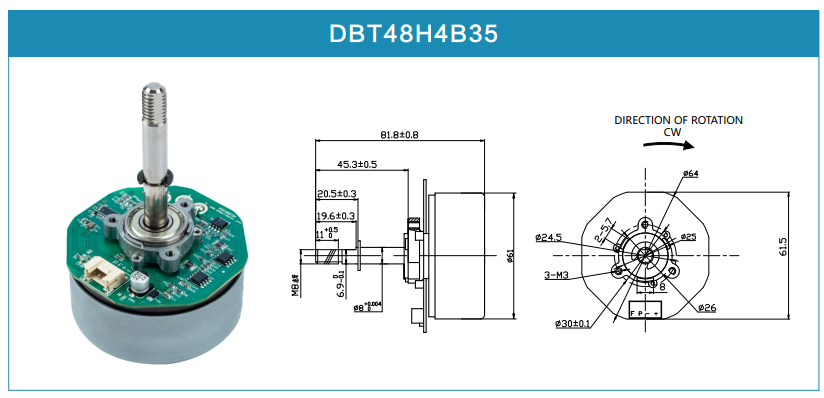

The 48 Series BLDC motor with a rated power of 45W, featuring a centrifugal design. As the main fan in fresh air systems, it delivers high airflow and static pressure to meet efficient ventilation needs in homes and small commercial spaces, while maintaining low energy consumption and noise for a healthy, comfortable indoor environment.
| Motor | Speed range | Rated voltage | Rated power |
| 48 Series | 500–5000rpm | DC:12V–24V | 45W (MAX) |
Motor specifications are detailed in the attachment.
